Conveyor Belt Shifter

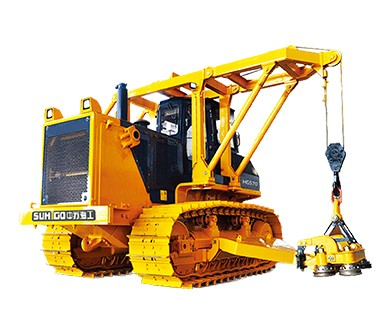

HGS70 Conveyor Belt Shifter(CBS)adopts special chassis with large gauge and high strength, equipped with hydraulic clamping moving head and relevant safety devices. It is mainly used for the lateral movement of conveyor belt in mining;the machine can also carry out lifting operation. Equipped with hydraulic clamping moving head.The clamping force and clamping angle adjustable,can adapt to the rail specification of 50-75kg/m.The maximum lifting capacity is 16t,the maximum lifting height is 300mm,the maximum moving distance is 1000mm,and can adapt to the moving of conveyor belt with width less than 2500mm
